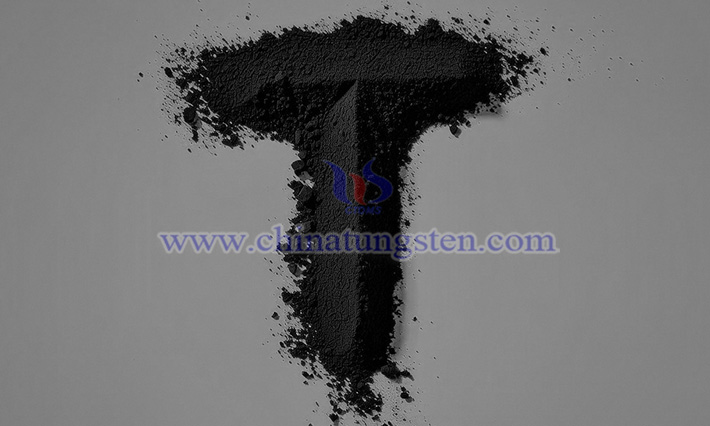

Tungsten disulfide (WS?), a transition metal sulfide, typically appears as a gray-black powder. It exhibits excellent lubricating properties with a low friction coefficient and maintains stability under extreme conditions such as high temperature and pressure, making it commonly used as a solid lubricant. Additionally, it shows promising application potential in fields such as catalysis, energy storage, and semiconductors, positioning it as a highly regarded multifunctional inorganic material.
Several preparation methods exist for tungsten disulfide, with the following being some of the most common:
Mechanical Ball Milling Method: This is a relatively simple physical method. A tungsten source (e.g., tungsten powder) and a sulfur source (e.g., sulfur) are mixed in a specific ratio and placed in a ball mill, where milling occurs under an inert gas atmosphere. The collisions and friction between the grinding balls and the materials induce a chemical reaction between tungsten and sulfur, forming tungsten disulfide. This method is straightforward and cost-effective, but the product's purity and crystallinity are relatively low, with a broad particle size distribution. It may introduce impurities and is challenging for precisely controlling the morphology and structure of the product.

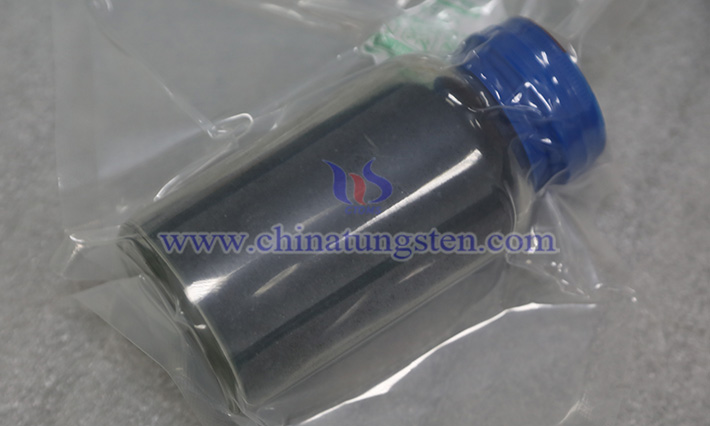

Chemical Vapor Deposition (CVD) Method: This method uses gaseous tungsten sources (e.g., tungsten hexachloride) and sulfur sources (e.g., hydrogen sulfide) to undergo a chemical reaction at high temperatures in the presence of a catalyst, depositing tungsten disulfide onto a substrate surface. It allows precise control over film thickness, uniformity, and crystallinity, enabling the production of high-quality tungsten disulfide films. The method is suitable for growing two-dimensional tungsten disulfide materials on various substrates for applications in electronic devices. However, it requires sophisticated equipment, involves complex processes, and incurs high costs.
Hydrothermal Method: Sodium tungstate, thiourea, and other raw materials are dissolved in water, supplemented with an appropriate mineralizer, and the pH of the solution is adjusted. The mixture is then transferred to a high-pressure reactor for hydrothermal reaction under specific temperature and pressure conditions. During the hydrothermal process, tungsten and sulfur ions react to form tungsten disulfide. This method features mild reaction conditions, high product purity, and good crystallinity. The morphology and size of the product (e.g., nanosheets, nanoflowers) can be controlled by adjusting reaction parameters. However, the reaction time is relatively long, resulting in lower production efficiency.
Solvothermal Method: Similar to the hydrothermal method, this approach replaces water with an organic solvent or a mixture of organic solvent and water. The choice of organic solvent can influence the reaction rate and properties of the product. The solvothermal method allows reactions at relatively lower temperatures and is particularly suitable for water-sensitive raw materials or scenarios requiring specific reaction environments. It can produce tungsten disulfide with unique morphologies and properties, though the use of organic solvents may increase costs and complicate environmental handling.
Chemical Precipitation Method: This involves adding a precipitating agent to a solution containing tungsten ions, causing tungsten and sulfur ions to combine and form tungsten disulfide precipitate. For example, a sulfide solution is added to a tungstate solution under controlled conditions to trigger a precipitation reaction. This method is simple and cost-effective, but the purity and crystallinity of the product may be affected by impurities and reaction conditions during precipitation, requiring additional washing and calcination steps to improve product quality.
Thermal Decomposition Method: An organic compound or complex containing tungsten and sulfur serves as a precursor, which is thermally decomposed at high temperatures to produce tungsten disulfide. By selecting an appropriate precursor, this method allows precise control over the composition and structure of the product, yielding high-purity and well-crystallized tungsten disulfide. However, the synthesis of the precursor and the decomposition process demand precise control and advanced equipment.
