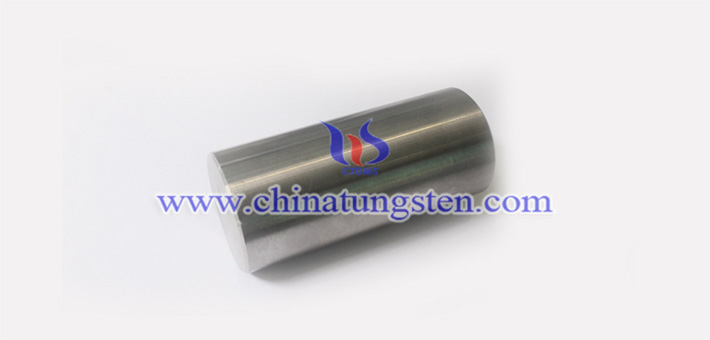

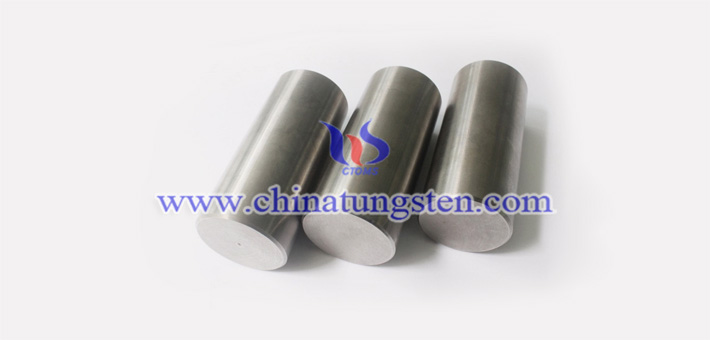

95W-3.6Ni-1.4Fe tungsten alloy cylinder has high tensile strength, good creep resistance and high mass/size ratio, so it can work well in limited space. Its high density enhances the sensitivity of load distribution control. It is more and more widely used in counterweights, such as the balance weight of the flywheel, the counterweight of the ballast F1 equation, the weight of the racing car and the counterweight of the dynamic balance.
More product details, please visit:
http://www.tungsten-alloy.com/tungsten-alloy-cylinder.html
The properties of 95W-3.6Ni-1.4Fe tungsten alloy cylinder are:
Nominal W Content: 95 wt.%
Nominal Nickel Content: 3.6 wt.%
Nominal Iron Content: 1.4 wt.%
MIL-T-21014: Class 3
SAE-AMS-T-21014: Class 3
AMS 7725 B: NIL
ASTM B777-87: Class 3
Minimum Density: 17.75 g/cc
Typical Hardness: 29HRC
Modulus of Elasticity: 50x106 psi
Ultimate Tensile Strength Min.:120ksi
Yield Strength Min (0.2% offset): 80ksi
Minimum Elongation (1” Gauge Length): 6%
Magnetic Properties: Slightly Magnetic
