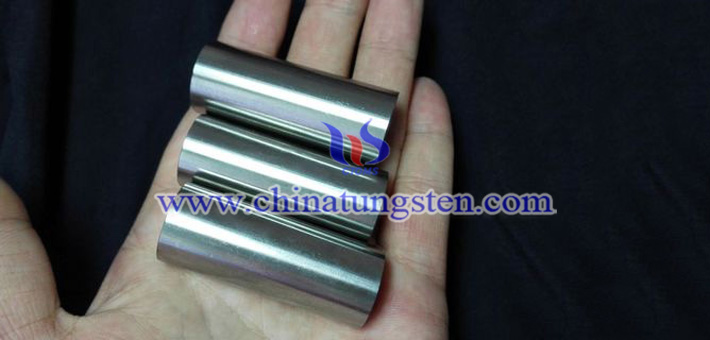

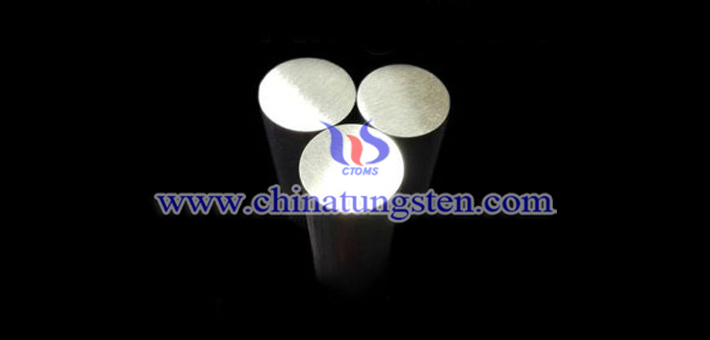

Anviloy 4200 tungsten alloy cylinder has high density, high tensile strength and good creep resistance, which can run well in limited space. It can form or change the center of gravity to ensure the best balance, which is widely used in the field of weight balancing.
The properties of Anviloy 4200 tungsten alloy cylinder are:
Alloy Type：W 93%、Balance Ni、Fe、Mo
MIL-T-21014: NIL
SAE-AMS-T-21014: NIL
AMS 7725 C: NIL
ASTM B777-87: NIL
Density: 17.7 g/cc and 0.639lbs/ in3
Hardness Rockwell: 32 C
Ultimate Tensile Strength Min: 125,000ksi
Yield Strength Min (0.2% offset): 95,000ksi
Elongation: 4% in 1"
Proportional Elastic Limit: 60,000PSI
Modules of Elasticity: 53 x 106 PSI
Coefficient of Thermal Expansion: 4.5x10-6/°C (20~400°C)
Thermal Conductivity: 0.27 CGS Units
Electrical Conductivity: 14 % IACS
Magnetic Properties: Slightly Magnetic
