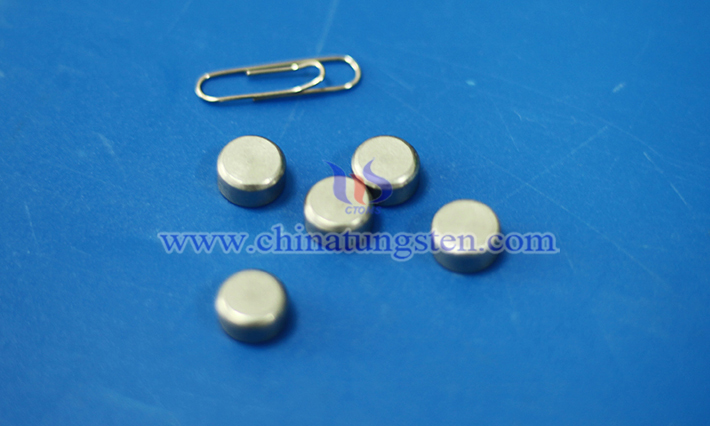

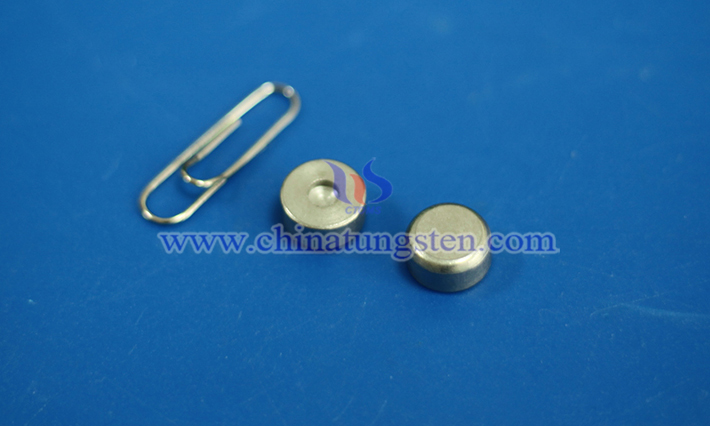

Barium tungsten electrode is an electron emission material composed of tungsten (W) and barium (Ba) compounds. Its thermal electron emission characteristics have important applications in vacuum electronic devices, light sources, medical and industrial fields.
1. Composite Structure Advantages of Barium Tungsten Electrode
The tungsten porous matrix provides high melting point and mechanical strength to ensure the stability of the electrode at high temperature. Active substances such as barium compounds are added through the impregnation process to significantly reduce the work function of the material, making it easier for electrons to leave the surface to form stable emission. The heat resistance of tungsten combined with the low work function of barium takes into account both high temperature stability and efficient electron emission capabilities.
2. Thermionic Emission Principle of Barium Tungsten Electrode
When the electrode is heated to a high temperature (usually >1000℃), the kinetic energy of electrons inside the metal increases, and some electrons overcome the work function and escape from the surface. The addition of barium improves the emission efficiency through the following mechanisms: (1) Reduced work function: barium atoms form a coating on the electrode surface, reducing the energy required for electrons to escape; (2) Increased emission current density: At the same temperature, the emission current density of the barium tungsten electrode is much higher than that of the pure tungsten electrode; (3) Reduced operating temperature: When achieving the same emission performance, the operating temperature of the barium tungsten electrode is lower than that of the pure tungsten electrode, which effectively extends the service life.
3. Typical Application Areas of Barium Tungsten Electrodes
3.1 Lighting and Light Sources
HID Lamps: used for road lighting and sports stadiums, with significant low-temperature fast start-up characteristics.
Xenon Flash Lamps: used in cameras and electronic police monitoring, supporting a stroboscopic life of millions of times.
Stage Lighting: achieves high-frequency stroboscopic and high color reproduction.
3.2 Lasers and Optoelectronic Devices
Laser Mercury-Purine Light Sources: improve pumping efficiency, reduce operating temperature, and enhance laser stability.
Electrovacuum Devices: such as microwave tubes and magnetrons, which realize high-frequency signal processing in radar and communication systems.
3.3 Medical and Industrial Equipment
Medical Beauty: skin rejuvenation and hair removal devices, surgical shadowless lamps, no radioactive toxicity, concentrated beams.
Industrial Detection: solar simulators, electric pulse sterilization equipment, support high energy output.
3.4 Special Fields
Military Aviation: navigation lights, night vision equipment, low temperature resistance, vibration resistance.
Scientific Research Detection: spectrometers, particle detectors, low work function improves detection accuracy.
