In the quest to explore novel dimming devices, tungsten oxide (WO3-x) thin films have emerged as a rising star, radiating a unique allure. With their exceptional thermochemical stability, semiconductor properties, and remarkable abilities such as photochromism, electrochromism, and acousto-optic effects, they are steadily gaining prominence in the field of materials science. WO3-x thin films are becoming the "darling" of next-generation dimming devices, poised to replace titanium dioxide (TiO2) thin films and lead a new trend in dimming materials.

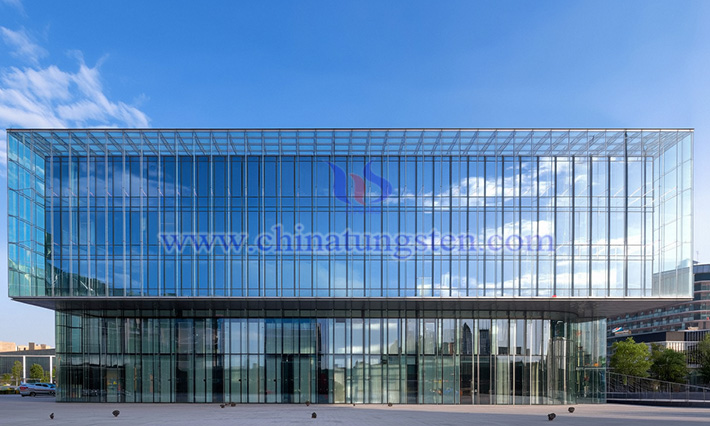

Imagine windows that are no longer static and transparent but can automatically adjust their transparency based on the intensity of external light, maintaining optimal indoor lighting at all times. Picture electronic device screens that adapt their display based on ambient light changes, reducing visual fatigue. These scenes, once confined to science fiction, are gradually becoming reality with the advancement of Tungsten Oxide Film technology. WO3-x thin films exhibit vast application potential in smart windows, flat-panel displays, e-books, and e-newspapers, promising to bring greater convenience and comfort to our lives.
Given the remarkable properties of Tungsten Oxide Films, how are they prepared? And how can their performance be tuned to meet the demands of diverse application scenarios?
I. Overview of Tungsten Oxide Film Preparation Process
The preparation of Tungsten Oxide Films boasts a rich variety of techniques, each with its own unique principles, processes, advantages, and drawbacks. Together, they offer multiple pathways to tailor WO3-x thin films for different applications.
1. Physical Vapor Deposition (PVD)
Physical Vapor Deposition (PVD) involves evaporating or sputtering a tungsten target into gaseous atoms or molecules at high temperatures, which then deposit onto a substrate to form a thin film. This method resembles a microscopic "particle rain," where gaseous tungsten particles gradually accumulate on the substrate, ultimately forming a uniform and strongly adherent WO3-x thin film. In practice, high-energy particle beams or plasma are used to "knock" atoms from the tungsten target, allowing them to travel freely in a vacuum and precisely settle onto the substrate, building the thin film layer by layer.
PVD encompasses various techniques, including thermal evaporation, electron beam evaporation, and sputtering. Thermal evaporation heats tungsten oxide material in a vacuum to sublimate it, which then condenses on a cooled substrate to form a film; this process is simple but demands precise control of the evaporation source and substrate temperature. Electron beam evaporation uses a high-energy electron beam to vaporize tungsten oxide in a vacuum, offering better control over evaporation rates and improving film quality. Sputtering, meanwhile, bombards a WO3-x target with high-energy particles, causing atoms to eject and deposit onto the substrate; this method operates at lower temperatures and produces high-quality films.
PVD-prepared films boast excellent uniformity, strong adhesion, and structural stability, but the equipment is costly, and the process requires a high vacuum environment.
2. Chemical Vapor Deposition (CVD)
Chemical Vapor Deposition (CVD) relies on gas-phase chemical reactions to deposit a solid thin film onto a substrate. This technique is akin to a microscopic "chemical magic show," where precise control of gaseous reactants and reaction conditions triggers chemical reactions on the substrate surface, growing high-quality WO3-x thin films. During the process, gaseous tungsten precursors and oxidants react under high temperatures or plasma excitation, forming a pure, highly crystalline WO3-x film on the substrate.
CVD includes methods such as vapor deposition, atomic layer deposition (ALD), and spray pyrolysis. Vapor deposition uses chemical reactions to deposit gaseous WO3 precursors onto the substrate, allowing precise control of film composition and thickness. ALD, a specialized CVD technique, introduces reactants alternately to form single-layer films with atomic-level thickness control. Spray pyrolysis sprays a tungsten trioxide precursor solution onto a heated substrate, where it thermally decomposes to form a film; this method is simple and cost-effective.
CVD-prepared WO3 thin films exhibit high crystallinity, purity, and strong substrate adhesion, though the equipment is expensive, and the process demands strict temperature control.
3. Solution Deposition
Solution deposition involves forming WO3 thin films on a substrate through chemical reactions or physical processes in a liquid environment. It’s as if the tungsten oxide "grows" slowly in a solution "cradle," gradually forming the desired film structure on the substrate. In practice, a tungsten-ion-containing solution contacts the substrate, and conditions like pH, temperature, and electric fields are adjusted to trigger chemical reactions or direct deposition, creating the WO3 thin film.
This method includes electrochemical deposition, sol-gel, and hydrothermal techniques. Electrochemical deposition uses electric currents to guide WO3 formation on the substrate, a simple process feasible at room temperature. The sol-gel method prepares a WO3 sol, forms a gel on the substrate, and heat-treats it into a film, offering precise compositional control. The hydrothermal method crystallizes a WO3 precursor solution into a film under high temperature and pressure, yielding high-quality crystalline films.
Solution deposition is relatively simple, cost-effective, and suitable for large-area substrates, with less stringent equipment requirements. However, it may produce films with lower quality and uniformity, and impurities introduced during preparation can affect performance.
II. Techniques for Tuning Tungsten Oxide Film Performance
After preparing WO3 thin films, tuning their performance to meet diverse application needs becomes a critical research focus. Scientists have uncovered various methods to optimize WO3-x properties, acting like "magic keys" to unlock their full potential.
1. Substrate Temperature
Substrate temperature plays a pivotal role in WO3 thin film preparation, significantly influencing their structure, morphology, and photoelectrochemical properties. In one study, researchers used magnetron sputtering to deposit WO3 films on quartz glass, exploring the effects of different substrate temperatures. At 500°C, the resulting monoclinic WO3 films exhibited better crystallinity and fewer defects. This improvement stemmed from the emergence of (002) crystal plane-oriented grains, increasing surface roughness and energy, which enhanced photo-generated electron-hole separation efficiency. Photodegradation experiments confirmed that samples prepared under these conditions achieved optimal performance.
Varying substrate temperatures also affect film growth and grain size. Lower temperatures may slow growth and yield smaller grains, while higher temperatures can accelerate grain growth or cause agglomeration. Thus, precise temperature control is key to achieving desired WO3 film properties, allowing researchers to "sculpt" films for applications like photocatalysis and optoelectronic response.
2. Ion Modulation
Ion modulation offers a precise avenue for tuning WO3 thin film performance, with tip-induced hydrogen injection as a standout technique. The Yu Pu research group at Tsinghua University’s Department of Physics employed scanning probe microscopy with a platinum-coated catalytic nanoprobe to study ion modulation in WO3 thin films. In a hydrogen atmosphere, the Pt-coated probe acts as an efficient, controllable catalyst, splitting hydrogen molecules into ions at the nanoscale interface between the probe tip and the WO3 surface, which are then injected into the film via an electric field.
This hydrogenation process induces electron doping, enabling precise, continuous control of the film’s resistance state. Remarkably, a negative bias can drive dehydrogenation, gradually reverting the film from a metallic to an insulating state. By precisely controlling hydrogen ion dosages, WO3 films can be tuned to multiple intermediate resistance states, achieving repeatable switching between states with excellent consistency. This technique demonstrates nanoscale multi-resistance state modulation at room temperature, offering new prospects for nanoscale memristive memory and potentially evolving into a universal ion injection method for broader material modification.
3. Preparation Conditions
Optimizing preparation conditions is vital for enhancing WO3 thin film performance, with factors like precursor concentration, solution temperature, coating layers, and annealing playing significant roles. In sol-gel preparation, higher precursor concentrations increase film thickness but may reduce uniformity, while lower concentrations yield thinner, more uniform films. Solution temperature influences sol formation and reaction progression, with deviations impacting film quality.
The number of coating layers affects film thickness and performance; more layers enhance certain properties but may introduce impurities or internal stress. Annealing improves crystallinity and microstructure, with studies showing WO3 films annealed at 500°C exhibiting superior electrochromic performance and stability compared to unannealed or improperly annealed films.
To achieve optimal WO3 thin films, researchers meticulously fine-tune these parameters, conducting extensive experiments to identify the best combinations—like finding the perfect harmony in a symphony of variables—ensuring the films perform beautifully across diverse applications.
