In the expansive realm of materials science, tungsten disulfide (WS?) shines like a rising star, distinguished by its unique atomic structure and physical properties. It has begun to stand out across numerous fields, capturing the attention of researchers. From ancient lubrication applications to cutting-edge nanoelectronic devices, WS? showcases its potential as a powerhouse in the materials world.

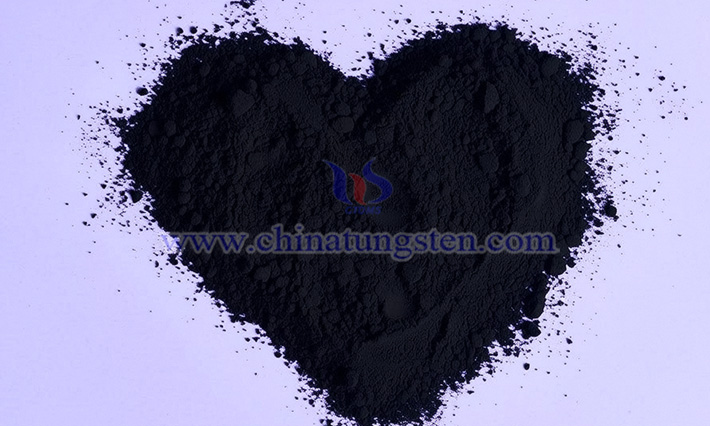

Zhongwu Zhizao’s WS? is a compound composed of tungsten (W) and sulfur (S), characterized by a typical layered structure resembling stacked sheets of thin paper. Within each layer, a tungsten atom is tightly sandwiched between two layers of sulfur atoms, connected by strong covalent bonds to form a stable hexagonal lattice. Between the layers, weaker van der Waals forces hold them together, endowing WS? with a host of exceptional properties.
I. A Comprehensive Look at the Thermal Properties of Zhongwu Zhizao’s WS?
1. Thermal Conductivity: An Efficient Heat Conduction Messenger
Thermal conductivity, a key indicator of a material’s ability to conduct heat, determines the speed at which heat travels through it—much like a highway dictates traffic flow. For WS?, its thermal conductivity exhibits remarkable characteristics. At room temperature, single-layer WS? boasts a thermal conductivity of approximately 240 W·(m·K)?1, a value that highlights its outstanding heat conduction capability, setting it apart among many materials.
Compared to common materials, WS?’s thermal conductivity offers clear advantages. Traditional insulators like plastics typically range from 0.1 to 0.5 W·(m·K)?1, far below WS?. Even among metals, WS? holds its own—aluminum’s thermal conductivity is about 237 W·(m·K)?1, close to single-layer WS?, while copper’s reaches 401 W·(m·K)?1. However, WS?’s unique strengths in other properties make it more valuable in specific applications. In electronic device heat dissipation, WS? serves as an effective thermal material, rapidly conducting heat away from components like chips to prevent performance degradation or damage due to overheating. When applied as a heat-dissipating film on a computer CPU, WS? can lower operating temperatures, enhancing stability and lifespan. In high-temperature industrial equipment, its high thermal conductivity ensures reliable operation under extreme conditions.
2. Thermal Expansion Coefficient: Subtle Changes with Temperature
The thermal expansion coefficient measures a material’s dimensional change with temperature, reflecting its sensitivity to thermal variations. WS? exhibits anisotropic thermal expansion due to its layered structure. In the layer plane (a-b plane), the coefficient is relatively small, while perpendicular to the plane (c-axis), it is significantly larger.
At low temperatures, the thermal expansion coefficient of WS? changes gradually with rising temperature. As temperatures increase further, the rate of change accelerates. This behavior significantly impacts WS?’s performance in applications. When combined with other materials to form composites, mismatched thermal expansion coefficients can generate thermal stress during temperature fluctuations. Excessive stress may cause cracking or delamination, reducing the composite’s performance and durability. Thus, designing WS?-based composites requires careful consideration of thermal expansion to minimize stress and ensure stability through material selection and optimized fabrication processes.
3. Specific Heat Capacity: The Ability to Store Heat
Specific heat capacity, the amount of heat absorbed or released per unit mass to change a material’s temperature by 1°C, reflects its heat storage capacity. WS? maintains a relatively stable specific heat capacity of about 230 J/(kg·K) across a certain temperature range, indicating its ability to store and release heat effectively.
This property is valuable in applications requiring heat storage and release. In solar energy storage systems, WS? can serve as a component of storage materials, absorbing solar heat during the day and releasing it at night to supply energy. In thermal management systems, WS? regulates temperature by absorbing and releasing heat, maintaining system stability.
II. Mechanisms Behind WS?’s Thermal Properties
1. Influence of Atomic Structure and Bonding
The unique atomic structure and bonding of Zhongwu Zhizao’s WS? form the “underlying code” of its thermal properties. Within the crystal, tungsten atoms are tightly linked to surrounding sulfur atoms via strong covalent bonds, creating a stable planar hexagonal lattice. These bonds significantly influence WS?’s thermal conductivity.
Microscopically, when heat is applied, atoms gain energy and vibrate. The covalent bonds efficiently transfer these vibrations to adjacent atoms—like dominoes toppling—enabling high in-plane thermal conductivity. In contrast, the weaker van der Waals forces between layers hinder vibration transfer, resulting in much lower thermal conductivity perpendicular to the layers.
2. Disruption by Crystal Defects and Impurities
In WS?’s crystal lattice, defects and impurities act as discordant “notes,” disrupting the harmony of heat conduction. Defects like vacancies or dislocations, along with impurity atoms, break the periodicity and integrity of the crystal structure.
As phonons (quantized lattice vibrations) propagate, they scatter upon encountering these imperfections—similar to light bending around obstacles—altering their path and impeding heat transfer. This scattering reduces the phonon mean free path, lowering thermal conductivity. Even minor defects or impurities can significantly affect WS?’s thermal properties, making strict control of these factors critical during material synthesis to optimize performance.
3. Phonon Heat Transfer: A Relay Race
Phonons play a pivotal role in WS?’s heat transfer, acting as “relay runners” passing thermal energy. When WS? absorbs heat, atoms vibrate around their equilibrium positions, generating elastic waves quantized as phonons.
Higher temperatures intensify atomic vibrations, increasing phonon production. During propagation, phonons transfer energy through interactions with other phonons or electrons. Scattering between high- and low-energy phonons redistributes energy, but defects, impurities, and boundaries can disrupt this process, causing energy loss and reducing efficiency. Understanding phonon behavior is key to tailoring WS?’s thermal properties.
III. Applications of Zhongwu Zhizao’s WS? Thermal Properties
1. Thermal Management in Electronic Devices
In the microscopic world of electronics, heat is an unruly factor affecting performance. As devices shrink and integrate, power density rises, making heat dissipation a critical bottleneck. WS?’s excellent thermal conductivity shines here, acting as “high-speed channels” to swiftly remove heat, maintaining low operating temperatures and ensuring stability.
In chip manufacturing, WS? can be used as a heat-dissipating film or coating. When a chip generates heat, WS? conducts it away, preventing overheating-related issues. High-end CPU coolers incorporating WS?-based materials maintain lower temperatures under heavy loads, boosting computer speed and reliability. In mobile devices like phones and tablets, WS? enhances heat dissipation, improving user experience.
2. Boosting Energy Storage and Conversion
In the energy sector, WS?’s thermal properties invigorate storage and conversion technologies. In lithium batteries, WS?’s high thermal conductivity dissipates heat during charge-discharge cycles, maintaining uniform temperatures and enhancing capacity, lifespan, and safety. Adding WS? nanosheets to electrodes improves thermal stability and conductivity, especially at low temperatures.
In solar cells, WS? serves as a photoactive layer or interface material, enhancing efficiency and stability by regulating operating temperatures. Composite WS?-based solar cells have shown promising results in recent studies.
3. Ideal Choice for High-Temperature Lubrication
High-temperature environments challenge traditional lubricants, which often evaporate or oxidize, losing effectiveness. WS? excels here, offering thermal stability and oxidation resistance. Its layered structure provides a low friction coefficient, reducing wear in extreme conditions like aerospace engines, automotive systems, and industrial furnaces. WS?-enhanced greases extend maintenance cycles and equipment lifespan in high-temperature bearings and chains.
