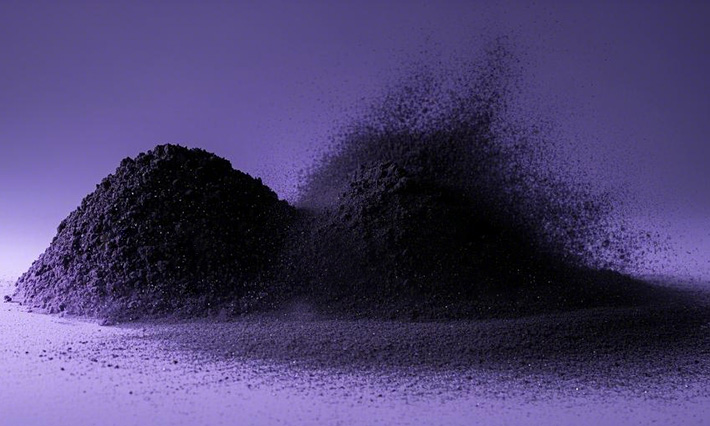

Tungsten disulfide (WS?), as an important transition metal sulfide, possesses a unique layered structure and excellent physicochemical properties, demonstrating broad application prospects in lubrication, catalysis, energy storage, and other fields. The mechanical ball milling method, a commonly used technique for preparing WS?, has garnered widespread attention due to its relatively simple operation and low cost.
I. Principle of Mechanical Ball Milling Method
The mechanical ball milling method utilizes mechanical energy to induce chemical reactions or structural changes in materials. In the preparation of tungsten disulfide, a tungsten source (e.g., high-purity tungsten powder) and a sulfur source (e.g., sulfur powder) are thoroughly mixed in a specific stoichiometric ratio and placed into a ball milling jar. The jar is filled with a certain number and size of grinding balls (commonly made of materials such as stainless steel, agate, or zirconia). When the ball mill operates, the grinding balls, driven by centrifugal and frictional forces, intensely collide with, grind, and mix the tungsten and sulfur powders inside the jar. These high-energy collisions and friction events provide sufficient energy to the tungsten and sulfur atoms, enabling them to overcome interatomic potential barriers and undergo a chemical reaction, gradually forming WS?.
II. Steps of Mechanical Ball Milling Method
Raw Material Preparation: High-purity tungsten powder and sulfur powder are selected to ensure minimal impurity content, avoiding any impact on the purity of the final product. The appropriate amounts of tungsten and sulfur powders are accurately weighed according to the stoichiometric ratio of WS? (W:S = 1:2). For instance, to prepare a specific amount of WS?, the required masses of tungsten and sulfur powders are calculated based on their molar masses and stoichiometric relationship.
Ball Mill Assembly: A ball milling jar of suitable specifications is chosen based on the experimental requirements, determining its volume. The weighed raw materials are carefully poured into the jar, followed by the addition of an appropriate amount of grinding balls. The material, size, and quantity of the grinding balls affect the milling efficiency and are typically selected based on experimental experience and preliminary exploration. For example, in experiments sensitive to impurities, agate or zirconia balls may be used; ball sizes vary, with larger balls providing primary impact force and smaller balls enhancing grinding finesse, requiring a balanced combination. After sealing the jar, it is securely mounted onto the ball mill to ensure proper positioning.
Ball Milling Process: The operating parameters of the ball mill, such as rotational speed and milling duration, are set. Rotational speed is a critical factor: if too low, the impact and friction forces of the grinding balls are insufficient, slowing the reaction rate; if too high, the balls may adhere to the jar walls, reducing effective collisions with the material. The optimal speed range, typically between 200-600 rpm, is determined through preliminary experiments. Milling duration is also crucial—too short, and the reaction remains incomplete; too long, and the product may become overly refined or contaminated with impurities. Milling times generally range from several hours to tens of hours. To prevent material oxidation and ensure a stable reaction environment, the jar is often filled with an inert gas (e.g., argon) during the process.
Post-Processing of the Product: After milling, the jar is removed, and the contents are carefully extracted. The resulting mixture typically contains tungsten disulfide along with potentially unreacted raw materials and minor impurities from grinding ball wear. The product is washed multiple times with a suitable solvent (e.g., organic solvents or acidic solutions) to remove unreacted sulfur and water-soluble impurities. After washing, the solid product is separated by filtration and dried in a vacuum oven at an appropriate temperature to remove residual solvent and moisture, yielding the final mechanically milled tungsten disulfide product.
III. Factors Influencing Mechanical Ball Milling
Ball-to-Material Ratio: This refers to the mass ratio of grinding balls to raw materials. A high ratio increases the mechanical energy provided by the balls but may lead to excessive refinement of the material and higher energy consumption. A low ratio reduces the impact and grinding efficiency, slowing the reaction and compromising product quality. The optimal ratio typically ranges from 5:1 to 20:1 and requires optimization based on specific raw materials and experimental needs.
Grinding Media: Grinding balls of different materials vary in hardness, density, and wear resistance, affecting milling outcomes. For instance, stainless steel balls are cost-effective but may introduce metal impurities like iron during milling. Agate balls offer high hardness and chemical stability but are more expensive. Zirconia balls, with good hardness and wear resistance, introduce fewer impurities and are commonly used.
Milling Environment: Temperature and atmosphere during milling significantly influence the reaction. Excessive temperatures may cause localized overheating, triggering side reactions or altering the product’s crystal structure. In an oxygen-rich environment, materials are prone to oxidation, reducing product purity. Thus, inert gas protection is essential.
IV. Advantages and Disadvantages of Mechanical Ball Milling
Advantages:
Relatively simple operation, requiring no complex equipment or extreme conditions like high temperature or pressure, making it easy to implement.
Cost-effective, with no need for expensive raw materials or specialized reaction setups.
Allows some control over particle size; by adjusting milling parameters, WS? with varying particle size distributions can be prepared, suitable for applications with specific particle size requirements.
Disadvantages:
Relatively low product purity, with a tendency to introduce impurities from grinding ball wear.
Difficulty in precisely controlling the crystal structure and morphology of the product, resulting in WS? with crystallinity typically inferior to that produced by some chemical methods.
High energy consumption during milling, with efficiency needing improvement for large-scale production.
