Mo-doping tungsten oxide film can be used as an electrochromic layer and assembled into an electrochromic device by thermocompression film method. While how to assemble electrochromic devices by hot pressing film method?
More details, please visit:
http://www.tungsten-powder.com/tungsten-oxide.html
Assembly of Electrochromic Device by Hot Pressing Film Method
Step One: Place the FTO conductive glass coated with Mo-doped tungsten oxide electrochromic film on the hot press of the hot press, coat the prepared polymethyl methacrylate/propylene carbonate and polyvinylidene fluoride-hexafluoropropylene/N, N-dimethylformamide quasi-solid electrolyte to the tungsten oxide film, and then another piece of FTO conductive glass is overlaid on the electrolyte.
Step Two: Place a 0.13 mm thick, 2 mm wide 3M tape between the two FTO glass to control the thickness of electrolyte and prevent short circuits. Then, the electrochromic device was produced by hot pressing at 70 °C for 10 s with a pressure of 0.4 kPa using a hot press.
Step Three: Wrap the edge of the device with UV-curable adhesive to make it firmer.

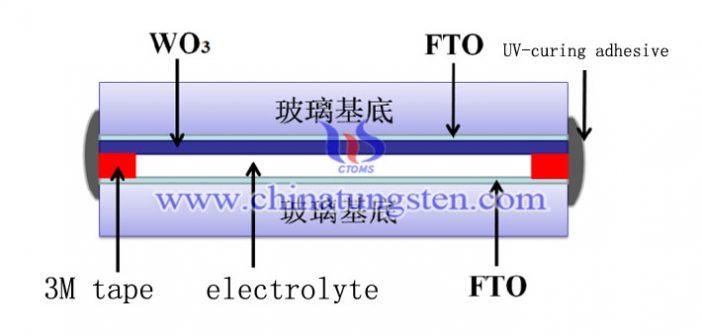

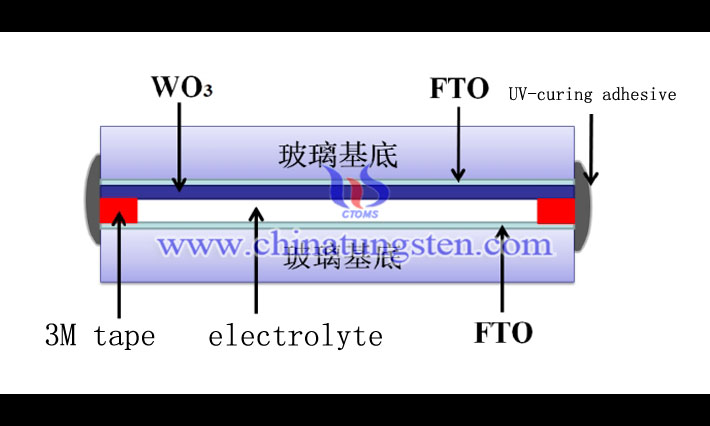

The packaging schematic diagram of electrochromic device assembled with Mo-doping tungsten oxide film image is shown as above.
