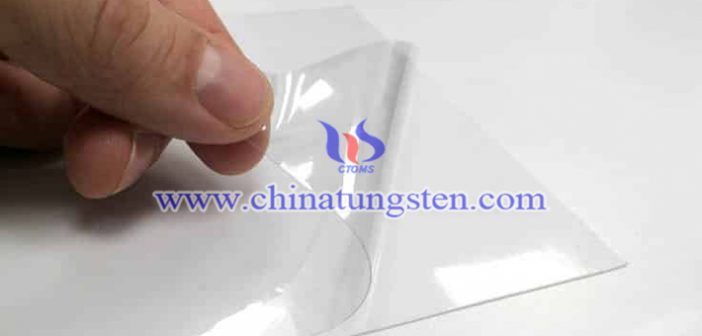

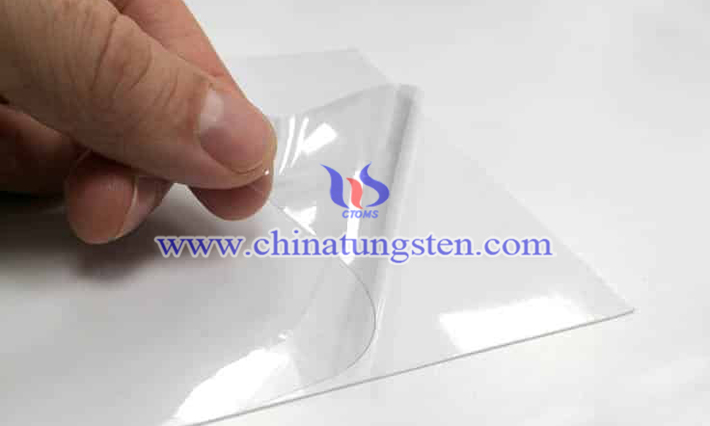

WO3 electrochromic nano film, mainly hydrated tungsten trioxide nano-disc electrochromic film, can be prepared by hydrothermal method on the FTO conductive substrate. Some experts have discussed various influencing factors of the WO3 electrochromic film during the preparation process.
More details, please visit:
http://www.tungsten-powder.com/tungsten-oxide.html
Experts have found that the seed layer and urea play a key role in hydrothermal growth. After pre-preparing a seed layer on the surface of the FTO by a sol-gel method, a hydrothermal reaction is carried out to obtain a porous structure film in which nanodisks are alternately arranged. When there is no seed layer, the prepared film is a flower-like structure composed of nanorods. When there is no urea in the hydrothermal reaction, the flower-like nanorod clusters cover almost the entire FTO surface. When urea is added to the hydrothermal reaction, the film grown without seed crystals is loose. And the surface of the film has a large amount of exposed FTO.
